MINI
Group Number: 2231
The MINI torch with anodized aluminum handle is suitable for most welding and cutting application. Ideal for body builders and refrigeration allows the welding up to 10 mm thick and cutting up to 50 mm. The new version with colored aluminum valves allows a better and faster identification of the gas.

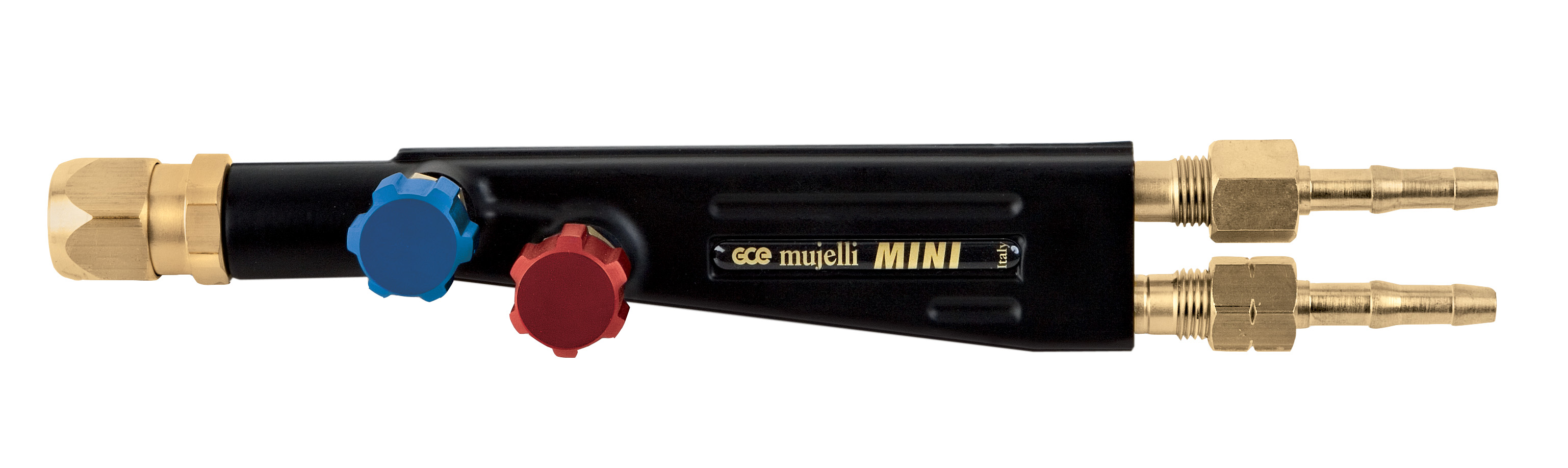

SHANK
| Art. Nr. |
Material version |
Connection |
| G0764567 |
Alluminium |
G1/4" LH×G1/4" RH |

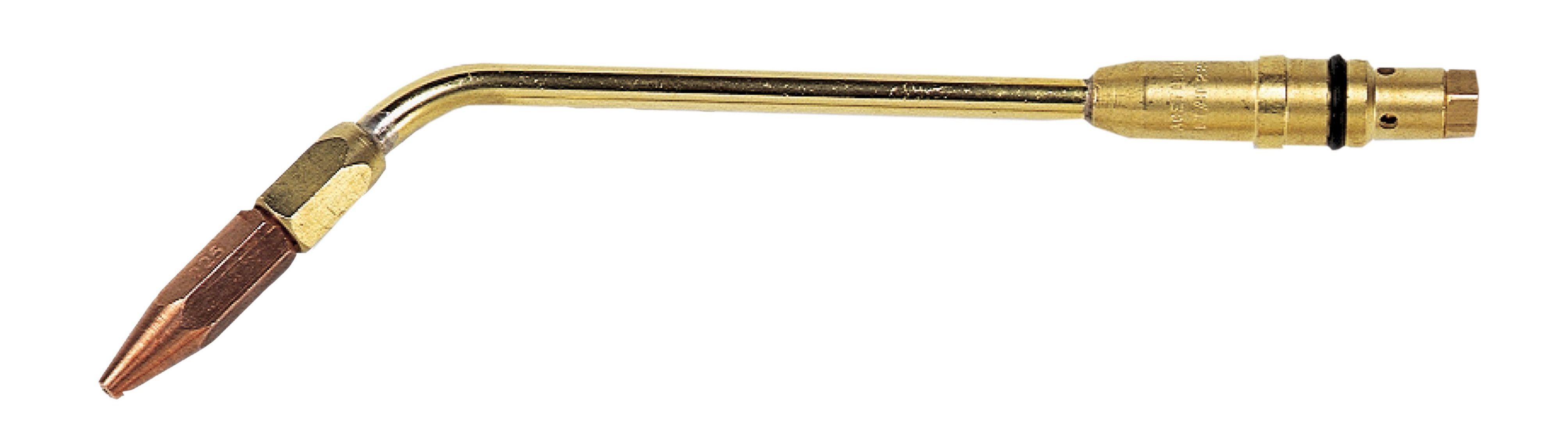

WELDING ATTACHMENT - ACETYLENE
| Art. Nr. |
Type |
Welding range (mm) |
| 20200 |
25 l/h |
0,2 |
| 20300 |
40 l/h |
0,4 |
| 20400 |
80 l/h |
0,8 |
| 20500 |
160 l/h |
1,6 |
| 20600 |
225 l/h |
2,2 |
| 20700 |
315 l/h |
3 |
| 20800 |
500 l/h |
5 |
| 20900 |
800 l/h |
8 |
| 21000 |
1250 l/h |
10 |
WELDING ATTACHMENT - PROPANE
| Art. Nr. |
Type |
Welding range (mm) |
| 22200 |
80 l/h |
0,8 |
| 22300 |
160 l/h |
1,6 |
| 22400 |
225 l/h |
2,2 |
| 22505 |
315 l/h |
3 |
| 22600 |
500 l/h |
5 |
| 22700 |
800 l/h |
8 |
| 22800 |
1250 l/h |
10 |
WELDING ATTACHMENT FLEXIBLE - ACETYLENE
| Art. Nr. |
Type |
Welding range (mm) |
| 23800 |
160 l/h |
1,6 |
| 23900 |
225 l/h |
2,2 |
| 24000 |
315 l/h |
3 |

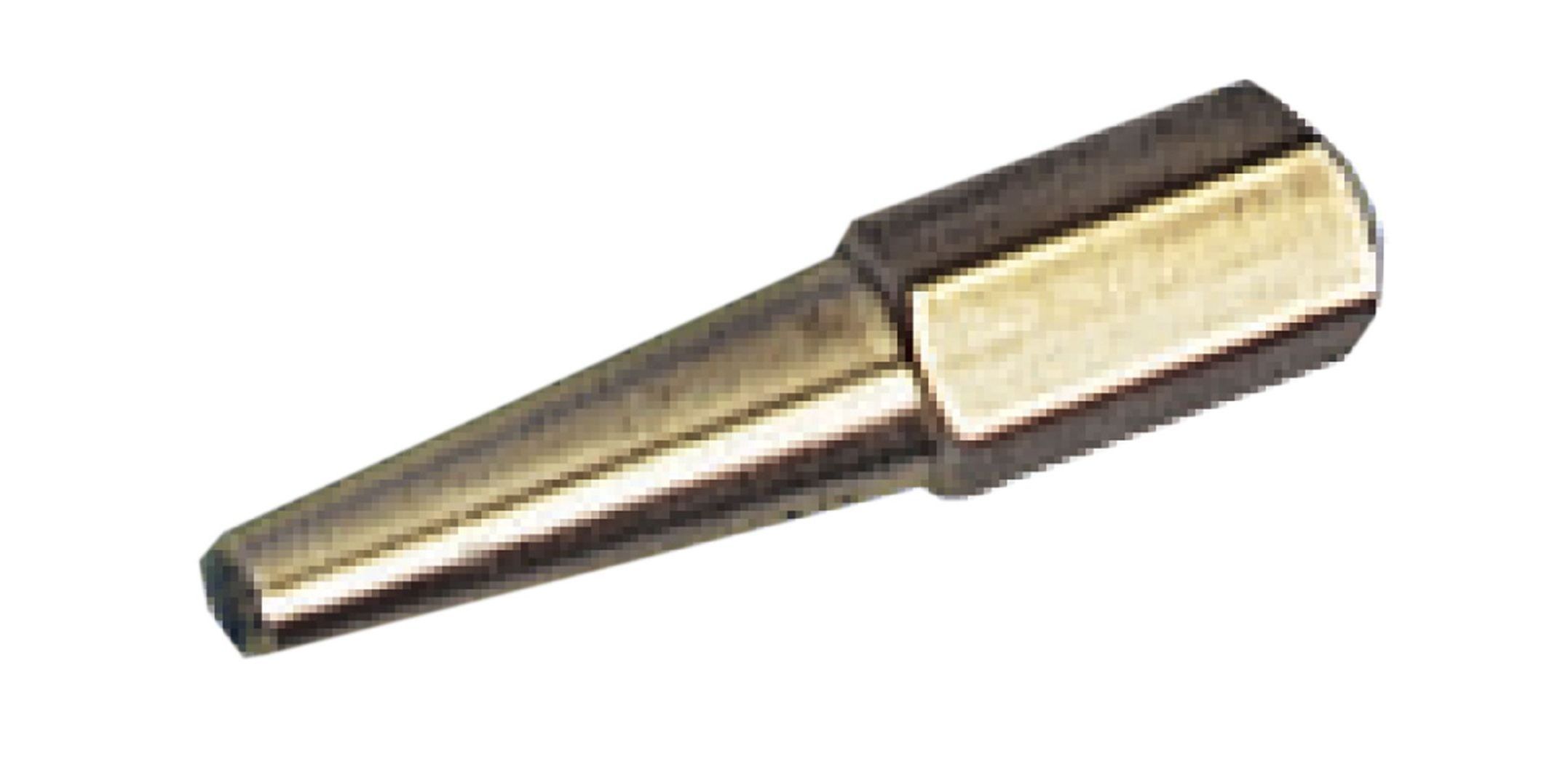

WELDING NOZZLE - ACETYLENE
| Art. Nr. |
Type |
Welding range (mm) |
| 21200 |
40 l/h |
0,4 |
| 21300 |
80 l/h |
0,8 |
| 21400 |
160 l/h |
1,6 |
| 21500 |
225 l/h |
2,2 |
| 21600 |
315 l/h |
3 |
| 21700 |
500 l/h |
5 |
| 21800 |
800 l/h |
8 |
| 21900 |
1250 l/h |
10 |
WELDING NOZZLE - PROPANE
| Art. Nr. |
Type |
Welding range (mm) |
| 23100 |
80 l/h |
0,8 |
| 23200 |
160 l/h |
1,6 |
| 23300 |
225 l/h |
2,2 |
| 23400 |
315 l/h |
3 |
| 23500 |
500 l/h |
5 |
| 23600 |
800 l/h |
8 |
| 23700 |
1250 l/h |
10 |

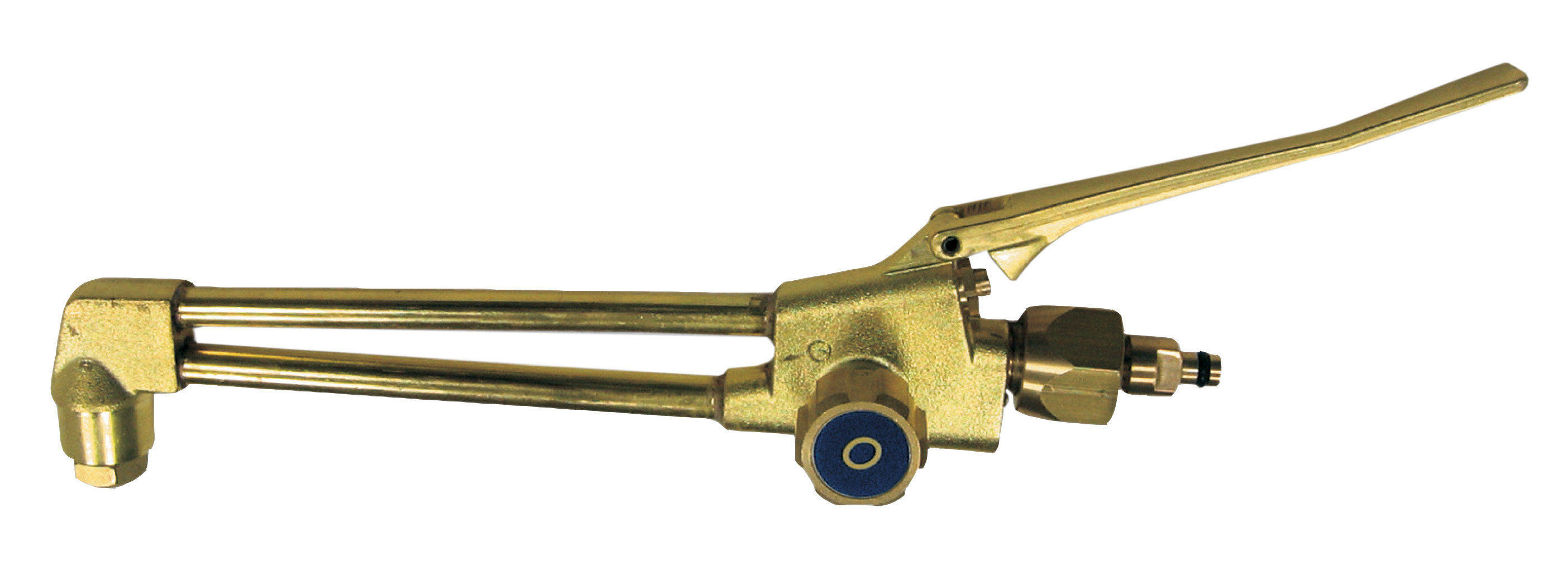

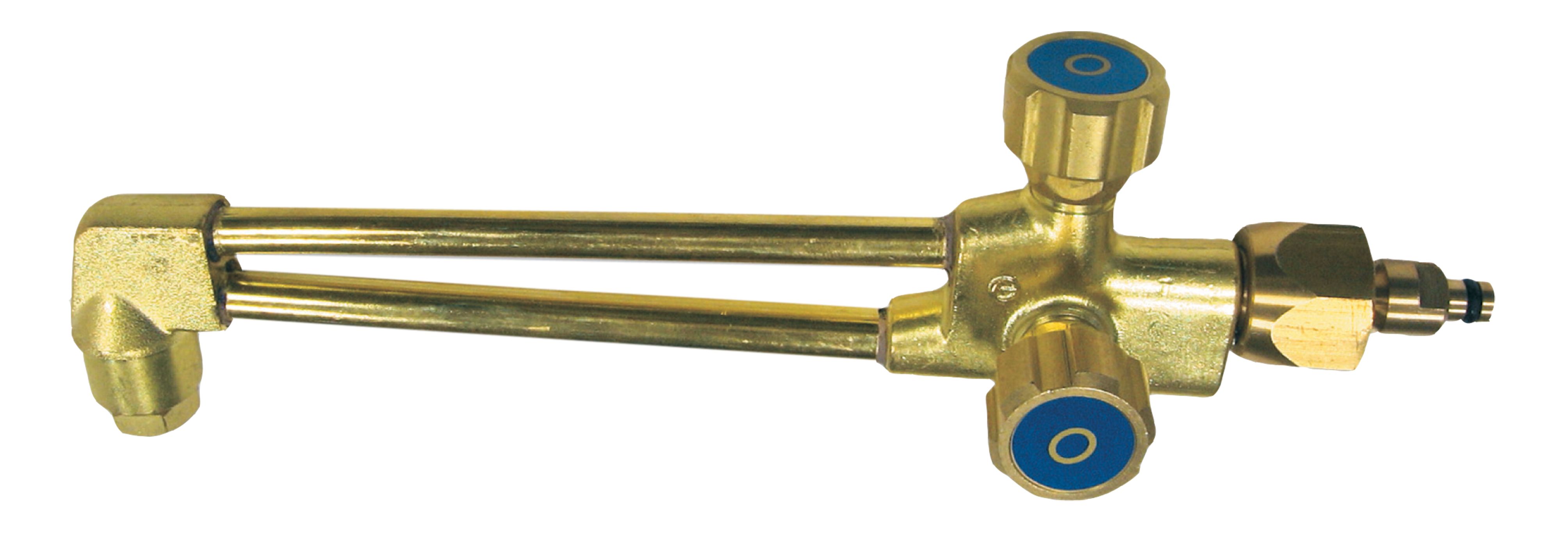

CUTTING ATTACHMENT
| Art. Nr. |
Gas |
Version |
| 0766130 |
A |
Knob |
| 0766132 |
P |
Knob |
| 0766131 |
A |
Lever |
| 0766133 |
P |
Lever |

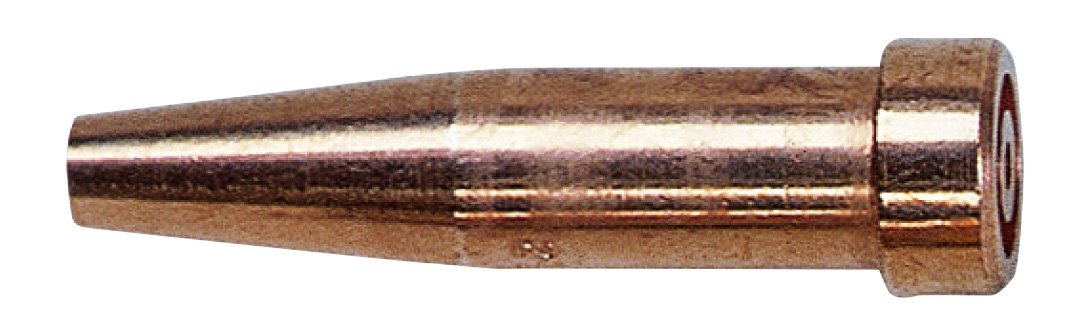

CUTTING NOZZLE - ACETYLENE
| Art. Nr. |
Length (mm) |
| 0768826 |
1 - 3 |
| 0768827 |
3 - 8 |
| 0768828 |
8 - 20 |
| 0768829 |
20 - 50 |
| 0768830 |
50 - 100 |
CUTTING NOZZLE - PROPANE
| Art. Nr. |
Length (mm) |
| 0769075 |
1 - 3 |
| 0769076 |
3 - 10 |
| 0769077 |
10 - 20 |
| 0769078 |
20 - 50 |

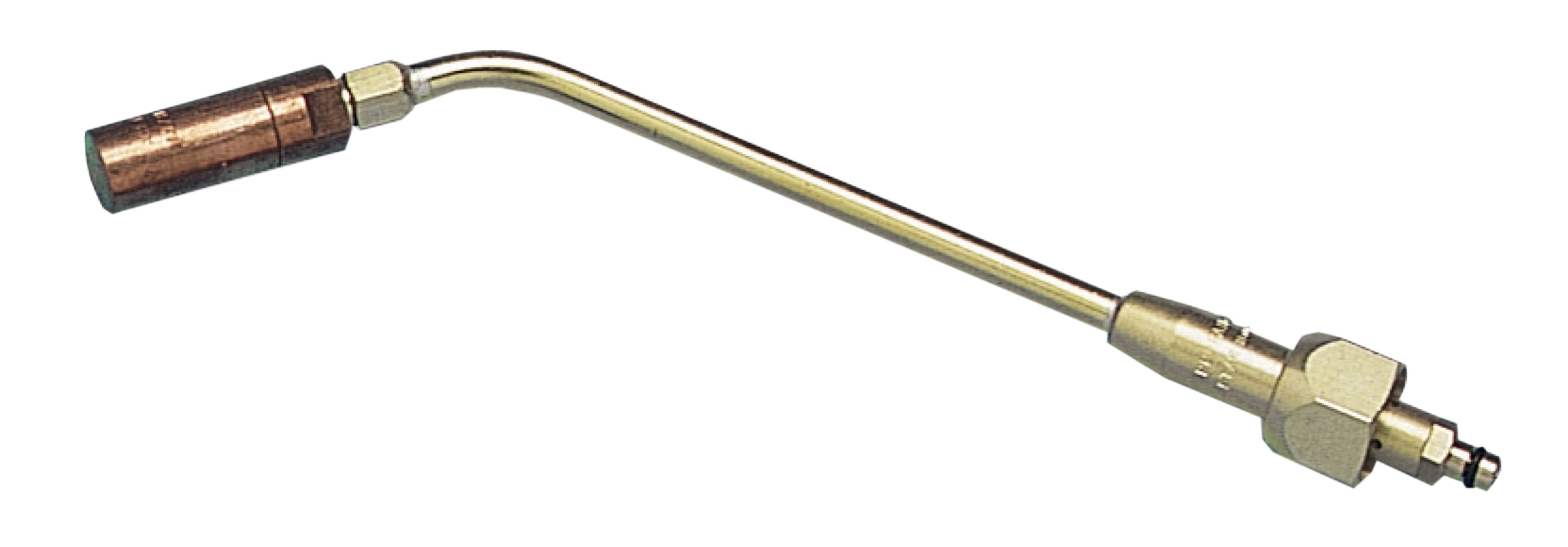

HEATING ATTACHMENT
| Art. Nr. |
Type |
Gas |
| 25000 |
800-1250 l/h |
A |
| 25000 |
800-1250 l/h |
P |

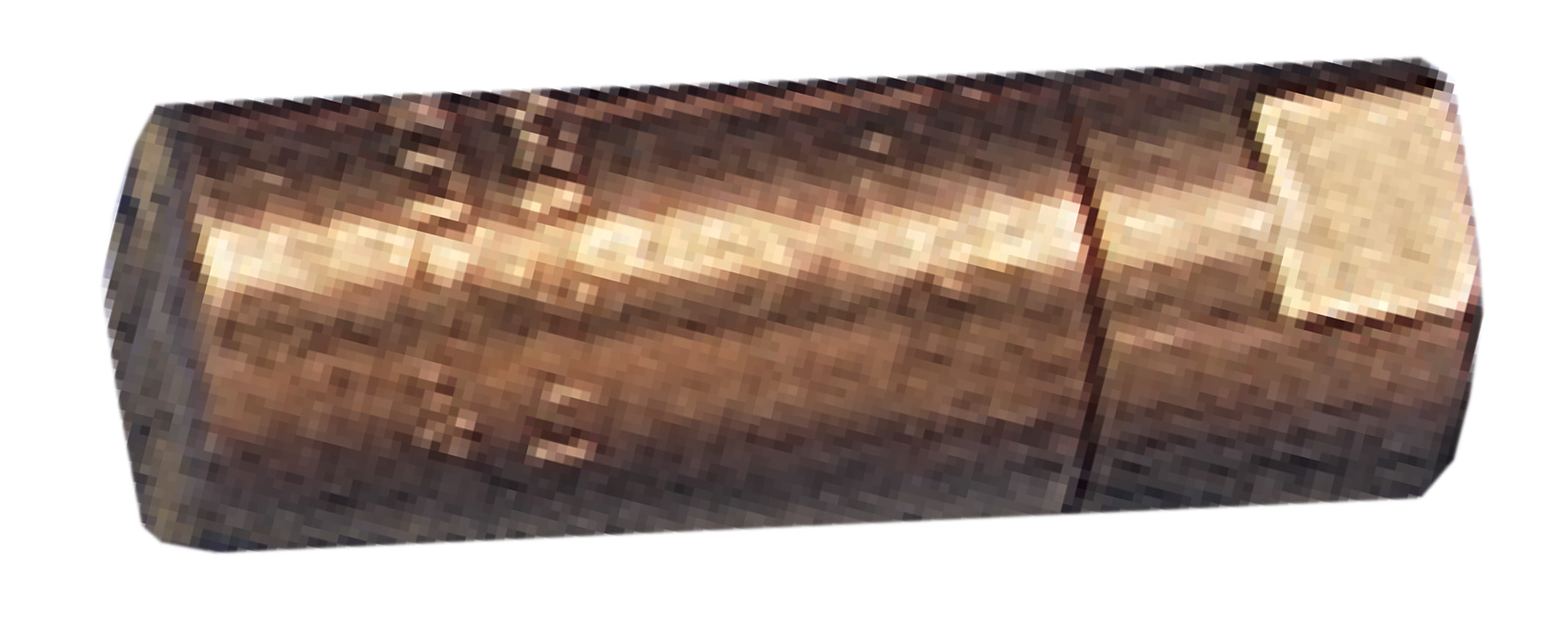

HEATING NOZZLE
| Art. Nr. |
Type |
Gas |
| 25100 |
800-1250 l/h |
A |
| 25600 |
800-1250 l/h |
P |
